D0401 Anti static table mats static control mats electrostatic discharge mats
Description
-ESD rubber mat used for microelectronic industries such as electronic semi-conduct devices, electronic computers, electronic communication equipment and integrated circuits etc.
– Eliminate damages caused by static electricity.

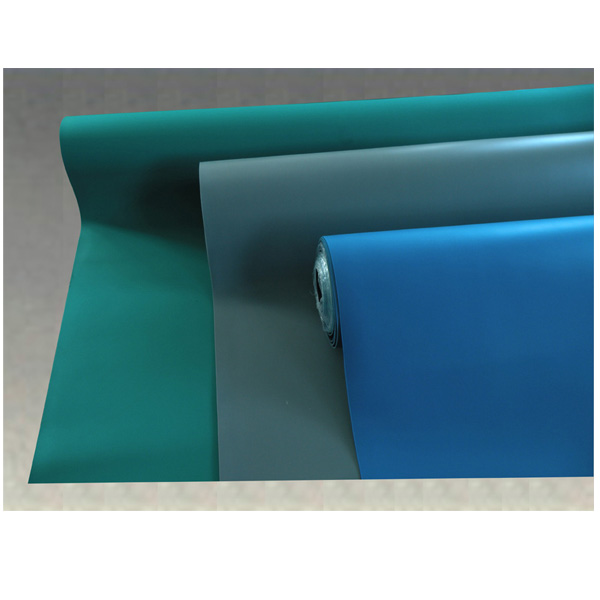

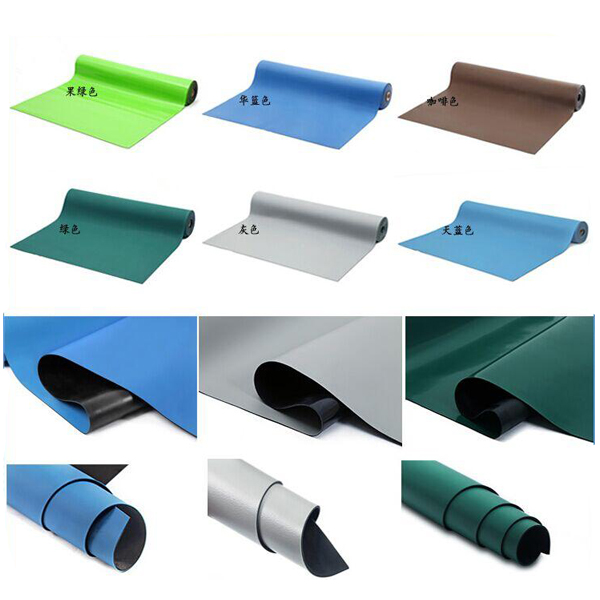

-Standard colors: Green, Grey, Blue (Customized colors are available.)
-Standrad sizes: 0.6mx10m, 1x10m, 1.2x10m (Any customzied sizes are available.)
-Thickness: 2mm, 3mm
Specification:
|
Parameter of rubber mat/ground mat (thickness: 2mm ) |
||
|
Static Dissipation layer |
Surface resistance |
107-109 Ω |
|
Friction static voltage |
<100V |
|
|
Conductive layer |
Surface resistance |
<=106Ω |
|
Friction static voltage |
<50V |
|
|
Static decay time |
5000V-500V |
<1.9s |
|
Volume resistance |
107-1010 Ω |
|
Specification
|
Test Item |
Test Result |
|
|
Tension Strength |
3.6Mpa |
|
|
Breakage coefficient of elongation |
188% |
|
|
Tear strength(right angle) |
20.6KN/M |
|
|
Resilience (6pcs sheets lapping over) |
14% |
|
|
Temperature of impact embrittlement (not cut) |
-25°C No damage |
|
|
Permanent variation under 70°C*22h, 25% compression |
17.9% |
|
|
Aging in hot air(70°C*22h) |
Variation of tension strength |
+8.0% |
|
Variation of breakage coefficient of elongation |
-3.8% |
|
|
Heat loss |
1.08% |
|
|
Test Standard: GB1040, GB/T529, GB1681, GB5470, GB10654, GB/T7141 |
||
Application
-ESD rubber mat used for microelectronic industries such as electronic semi-conduct devices, electronic computers, electronic communication equipment and integrated circuits etc.
– heat resistant and a perfect choice for use around soldering irons and other heat sources.
Package
10m/roll,
1roll/carton
20cartons/pallet
