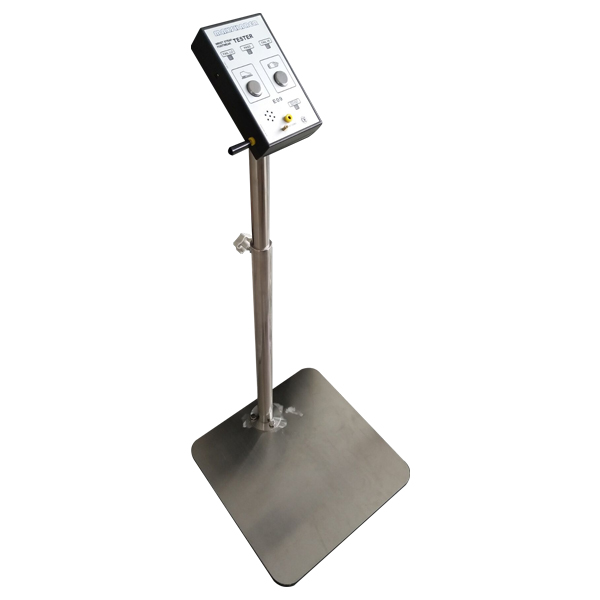

E09 High-tech Antistatic ESD Wrist/Foot Strap Tester

Description

  • Model: E09
  • Brand: Maxsharer
  • Delivery: 7-10 days
  • Warranty: 12 months
  • Description

    1.Simple operation with dual test circuits, tests both wrist straps and foot grounders.

     2.Auto-ranging circuit automatically selects proper test range, user touches pad and LED displays test results. Red light and audible indicator mean circuit resistance is too high or too low.

    3.It is complied with standard 6.1.3.3 in ANSI ESD S20.20.It is recommended to calibrate E0901 checker once year.

  • Specification
    Operating Temperature 0~31℃
    Relative Humidity 0~90%
    Size 82.5mm(L)*39mm(H)*142.5mm(W)
    Weight 235g



  • Decay Test Results
    Wrist test margin

    750 KΩ ~10.5MΩ

    Shoe cover test margin

    750KΩ~10.5MΩ

    Resistance tolarance

    (±20%)

    Test output Resistance Tolerance
    (±20%)
    Test output
    ≤ 740KΩ Red(FAIL LO) ≤740KΩ Red(FAIL LO)
    750KΩ Green(PASS [Normal]) 750KΩ Green(PASS [Normal])
    10.5MΩ Green(PASS[Normal]) 100MΩ Green(PASS[Normal])
    ≥ 11.5MΩ Red(FAIL HI[Fail Hi]) ≥ 40MΩ Red(FAIL HI[Fail Hi])
  • Application

    1.Simple operation with dual test circuits, tests both wrist straps and foot grounders.

     2.Auto-ranging circuit automatically selects proper test range, user touches pad and LED displays test results.

  • Packageby box first, then by carton
