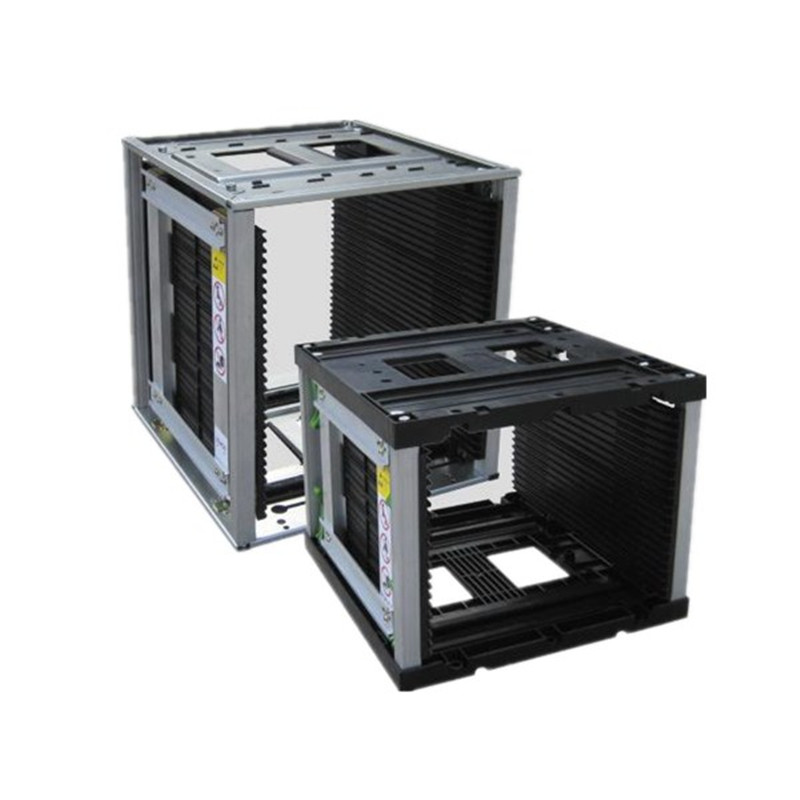

B0101 & B0110 SMT ESD Magazine Rack

Description

P.N. Base Material Adjust. MaxTem. mm  Exterior Size Adjust. mm mm
Ref.Position
mm
Guide Slot
PCB Slots kg
weight
L W H A B D Ws P
B0101 Plastic Gear track 60℃ 355 320 263 50-250 34 34 3.5 5.0 10.0 20 4.7
B0102 Plastic Screw 60℃ 335 315 580 80-250 34 34 3.5 8.0 10.0 50 5.1
B0103 Metal Gear track 120℃ 355 320 563 50-250 34 34 3.5 5.0 10.0 50 5.6
B0103A Metal Gear track 120℃ 400 320 563 50-250 34 34 3.5 5.0 10.0 50 5.8
B0103-AU Metal Auto adjustment 120℃ 400 320 563 50-250 34 34 3.5 5.0 10.0 50 5.8
B0104 Metal Screw 150℃ 355 320 563 50-250 34 34 3.5 5.0 10.0 50 5.7
B0105 Plastic Gear track 60℃ 355 320 563 50-250 34 34 3.5 5.0 10.0 50 4.1
B0106 Metal Gear track 120℃ 460 400 563 50-330 34 34 3.5 5.0 10.0 50 7.6
B0106-3 Metal Gear track 120℃ 460 400 563 50-330 34 34 3.5 5.0 10.0 50

7.8

B0107 Metal Screw 120℃ 460 400 563 50-330 34 34 3.5 5.0 10.0 50

7.7

B0107-3 Metal Screw 120℃ 460 400 563 50-330 34 34 3.5 5.0 10.0 50

7.9

B0108 Metal Gear track 120℃ 535 460 570 50-390 34 41 3.5 5.0 10.0 50 10.5
B0109 Metal Gear track 120℃ 535 530 570 120-460 34 41 3.5 5.0 10.0 50 12.7
B0110 Metal Gear track 120℃ 355 320 263 50-250 34 34 3.5 5.0 10.0 30 5.3



Adjustable through screws, gear adjustment.

Common type (60℃) and heat-resistance type(120℃ ,160~200℃) are available.

Surface resistance: 104~106 Ω.

Base: P-Conductive PS, M-Zincification Iron

Adjustment: G-Gear track adjustment, S-Screw adjustment

Max tolerant temperature: 60℃,120℃,160~200℃ different material

PCB slots:The number of the SMT magazine rack Can accommodate PCBs



Features and Advantages:
Strong injection moulded construction with metal reinforcement
Meet standard dimensions most frequently used on automated lines
Not subject to accidental change in width. No wear of moving parts.
Partition is made of assembled plastic parts ,surface resistance 10e4-10e6ohms
This system provides a better dimensional stability when strong
